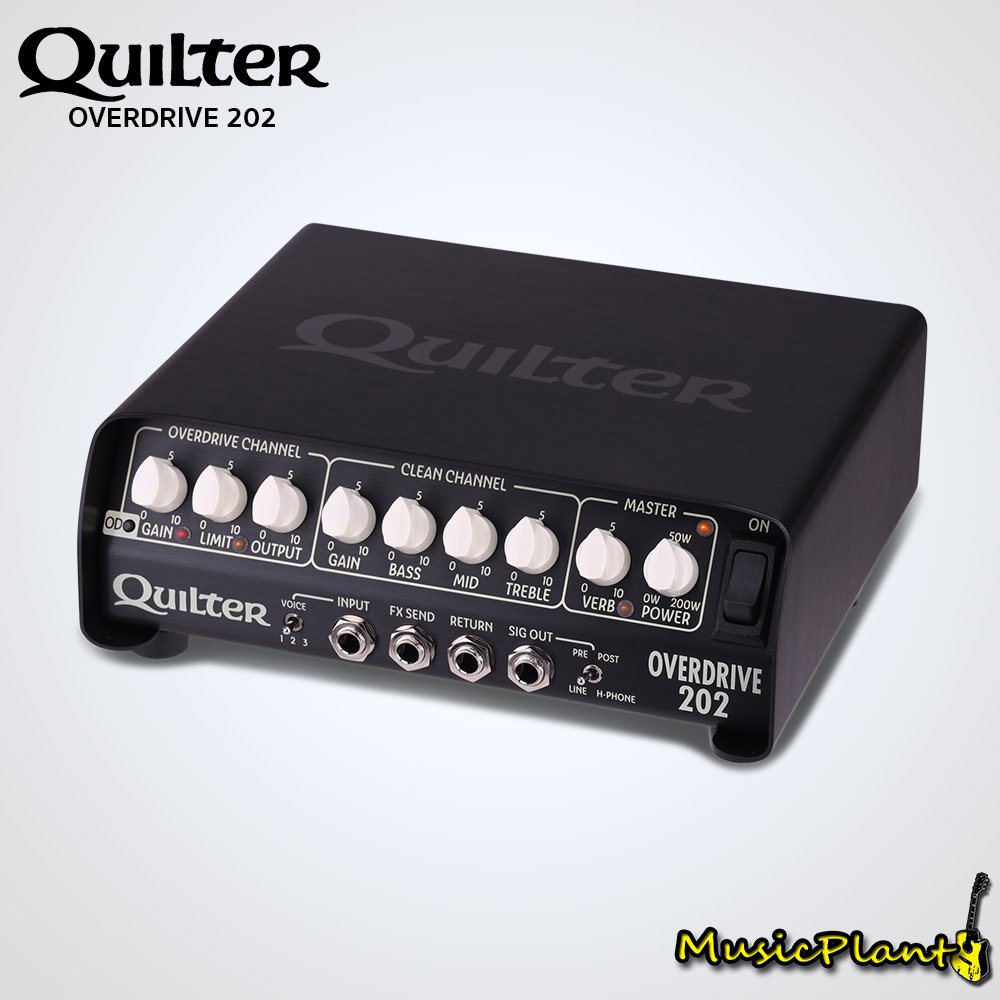

Quilter OverDrive 202 Guitar Amp.

Quilter OverDrive 202 Guitar Amp.

The OverDrive 202 picks up where the Overdrive 200 left off and features three new voices with their own overdrive channel, reverb, limiter, and a cabinet simulated line out. The three voices range from the newly enhanced Quilter classic Full Q on voice 1, the "bell-like" harmonically rich voice 2, through to the incisive and full bodied attack of voice 3. The Overdrive 202 delivers an appropriate voice for any musical setting. Combine with a UFC-3 and BlockDock 12 HD for the ultimate grab and go rig.
Features 3 voicings, two controllable channels, nine powerful controls including a Limiter that works on both channels, master Reverb, FX Loop with “stealth input” for tracks, pre/post signal and headphone jack with internal cab-sim, traditional Quilter warmth that wakes up any good speaker, and our latest 200W power platform with “go anywhere” AC voltage compatibility. On the rear: RJ-45 footswitch jack, dual-impedance 4 and 8 ohm speaker jacks, and locking AC cord IEC inlet.

Specification

• Power Output: : 0 to 200 watts, 4-8 ohms
• AC Power Req.: : 100-240Vac, 50-60Hz, 300W maximum
• Input Connections: : 1/4" mono, 2meg impedance.
• Effects Loop: : 1V full scale, 1K Send impedance, 47K Return impedance.
• Signal Out (Front): : TRS, switchable, Line Out pre-Master +4dB balanced, or Headphone post-Master.
• Speaker 1 Output: : 8 ohms, 200 W minimum recommended rating
• Speaker 2 Output: : 4 ohms, 200 W minimum recommended rating
• Dimensions: : Height: 2.5” + 0.4” rubber feet (6.35cm + 1cm rubber feet) Width: 8.6” (21.8cm) Depth: 7.3” (18.5cm)
• Weight: : 4 lbs (1.8kg)
